Model RRX45

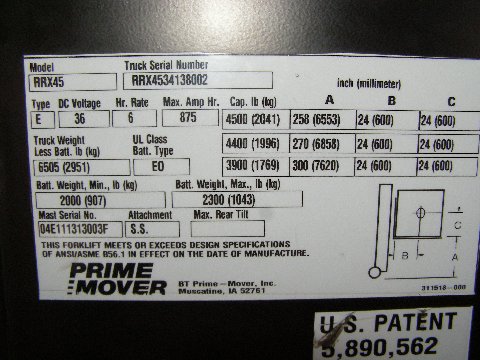

Serial Number RRX4534131002 (on 1st forklift)
Master Serial Number 04E071313003F

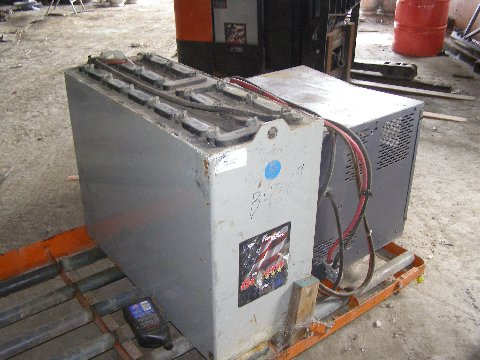

General Battery Charger Included

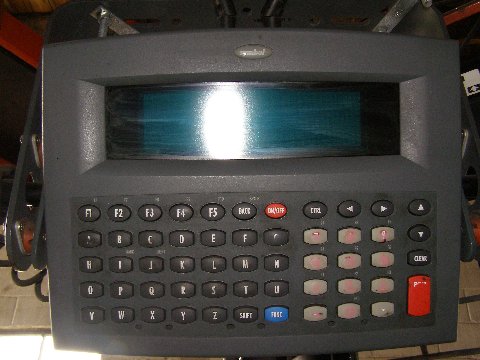

Symbol electronics with bar code reader
4500 lbs Capacity
Total Hours 2006

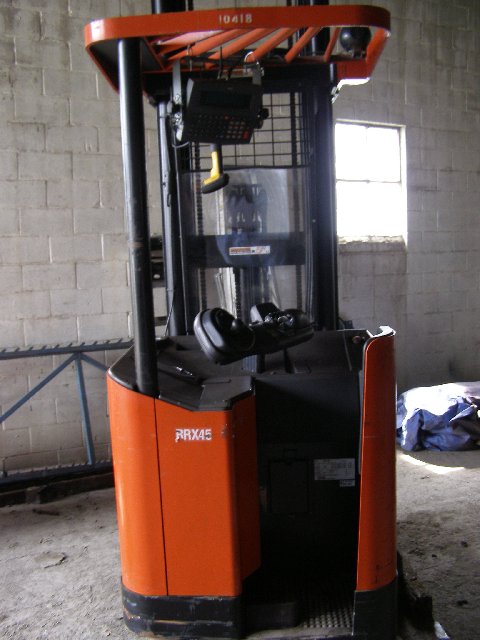

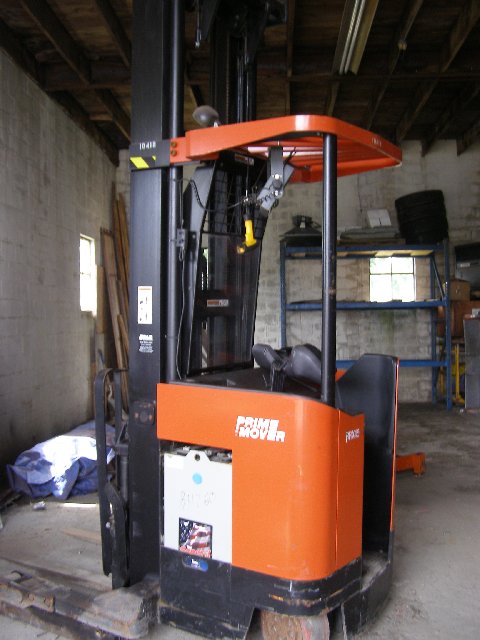

Narrow Aisle Single Reach Forklift
Mast Height 132 inches
3 Stage Mast
Side Shift
300 inch reach
4500 lbs @ 300"
3400 lbs @ 270"
2500 lbs @ 300"
36 volts DC
Maximum Amp Hrs 8 HR/875
Battery weight 2300 lbs
Lifting Speed loaded and unloaded 60/95 fpm
Lowering speed loaded and unloaded 95/90 fpm
Travel speed loaded 6.0 mph
Total weight with battery 8500 lbs
Truck length 74.6"
Width 40.5"
Fork Size 1.75 x 4 x 42
Maximum fork spread 29.5"
Minimum Aisle width for right angle stack 101"
Battery Charger Included
